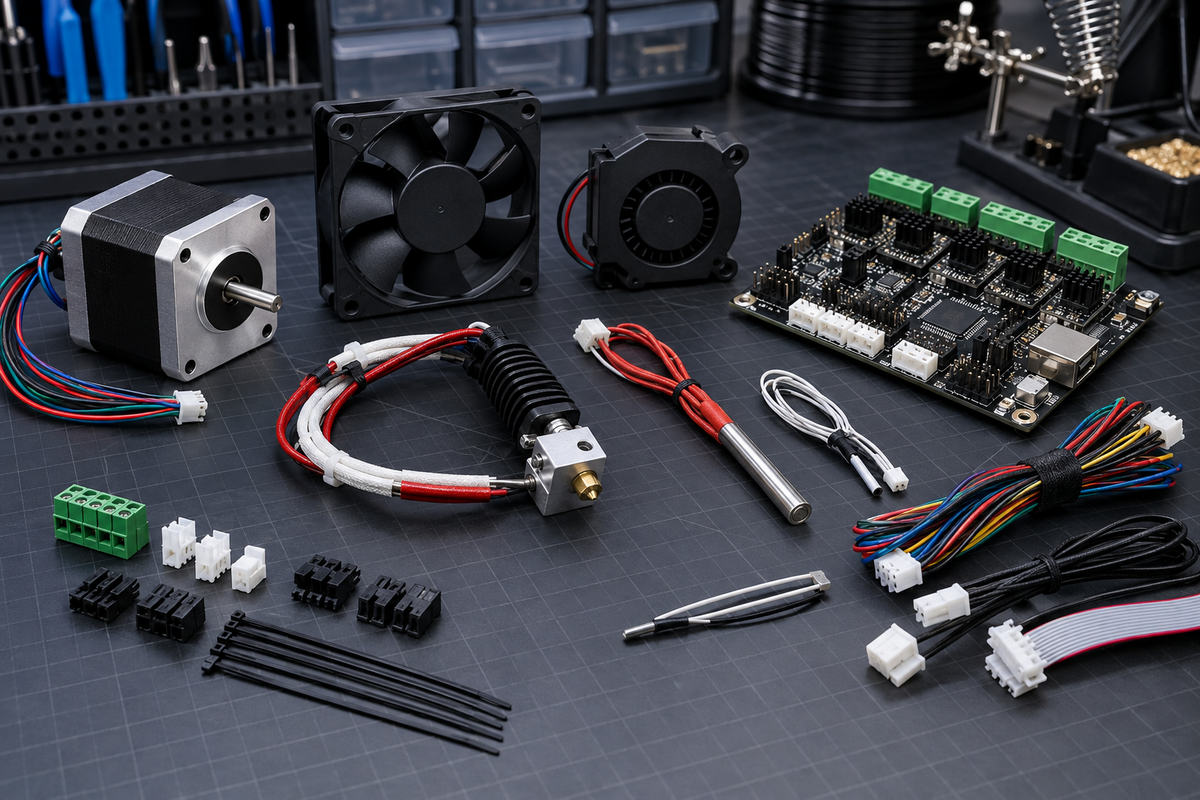

Behind every FDM 3D printer is a collection of electronic components working together to control movement, cooling, and temperature. Stepper motors, fans, heater cartridges, thermistors, wiring, and connectors all play different roles during the printing process.
Understanding these components can make routine inspection and replacement easier when maintaining a printer.
Stepper motors control precise printer movement
Stepper motors convert electrical signals into controlled mechanical movement. They are commonly used to move the print head, build platform, and extrusion system along different axes.
Loose mounting hardware, damaged cables, or unusual motor behavior can sometimes indicate that a component needs inspection.
Replacement motors should match the printer's electrical requirements, dimensions, shaft configuration, and mounting specifications.
Cooling fans manage heat around printer components
FDM printers often use multiple fans for different purposes. A hotend fan helps manage temperatures around the heatsink, while blower-style fans may direct airflow toward newly deposited filament.
Dust can gradually collect on fan blades and guards, so visual inspection and occasional cleaning can help keep airflow paths clear.
Replacement fans are available in different sizes, voltages, connector types, and airflow configurations, making compatibility an important consideration.
Heater cartridges generate hotend temperature
The heater cartridge fits inside the heater block and provides the heat required to melt filament.
Because it operates at high temperatures, wiring condition and secure installation are important. A damaged cartridge, loose connection, or incompatible replacement can affect hotend operation.
Heater cartridges are available in different voltage and power specifications, so replacements should match the requirements of the printer and hotend.
Thermistors monitor temperature
Thermistors provide temperature information to the printer's control system. They are commonly positioned around the hotend or heated build platform depending on the printer design.
Because temperature sensing is important to printer operation, thermistors and their wiring should be handled carefully during maintenance.
Different printers may use different sensor specifications, connectors, and mounting methods, so replacement parts should always be checked for compatibility.
Wiring and connectors keep components connected
Motors, fans, heaters, sensors, and switches all depend on wiring and connectors to communicate with the printer's electronics.
Loose plugs, damaged insulation, or strained cables can create problems over time, particularly around moving components.
Organizing compatible connectors, cable extensions, and small wiring accessories can make maintenance more convenient when replacing individual parts.
Whenever electrical components are serviced, the printer should be powered down and the manufacturer's maintenance instructions should be followed.
Electronics become easier to manage with organized spare parts
Keeping commonly used electronic components organized can simplify printer maintenance. Fans, thermistors, cables, connectors, and compatible replacement parts can be stored together so they are easier to identify when needed.
Because voltage, dimensions, wiring, and connector standards vary significantly between printers, careful compatibility checks remain essential before installing replacement electronics.
